Studio Stands, Booms & Tripod Heads
Cambo Studio Stands
Cambo’s range of Studio Stands offer photographers rock solid camera support and reach that cannot be obtained with tripods. Fingertip control using counterweights and smooth vertical movements, geared horizontal shift for precise camera positioning and the ability to lock off the stand when perfect positioning has been achieved; these are the key benefits a high quality studio stand offers. These stands are a must for product photographers looking to get the camera easily positioned for flatlays, eComm/fashion photographers looking for repeatability and secure camera support in a bustling studio, and any other studio environment where precise control and positioning, heavy duty support and security for elevated shooting positions is required.
Cambo Mono-1 / Mono-2
The Portrait and E-Comm stand
Cambo’s Monostand, including geared lateral moving cross arm and movable 3/8 camera mount, is their entry level offering. Available in two heights, a complete Mono Studio Stand consists of a Mono-1 or Mono-2 column with MBX-0 or Mono-0 base (for the Mono-1 only) to be ordered seperately. Note: Mono-2 column requires the MBX-0 base
Height (column only): 195cm / 255cm
Height (complete): 210cm / 270cm
Weight (column only): 13kg / 14kg
Weight (complete w/Mono-0): 35 kg (Mono-1 only)
Weight (complete w/ MBX-0): 50kg / 51kg
Diameter of column: 70mm
Cross arm length: 650mm
Recommended Base: MONO-0 or MBX-0
Load capacity: 2-8 kg.

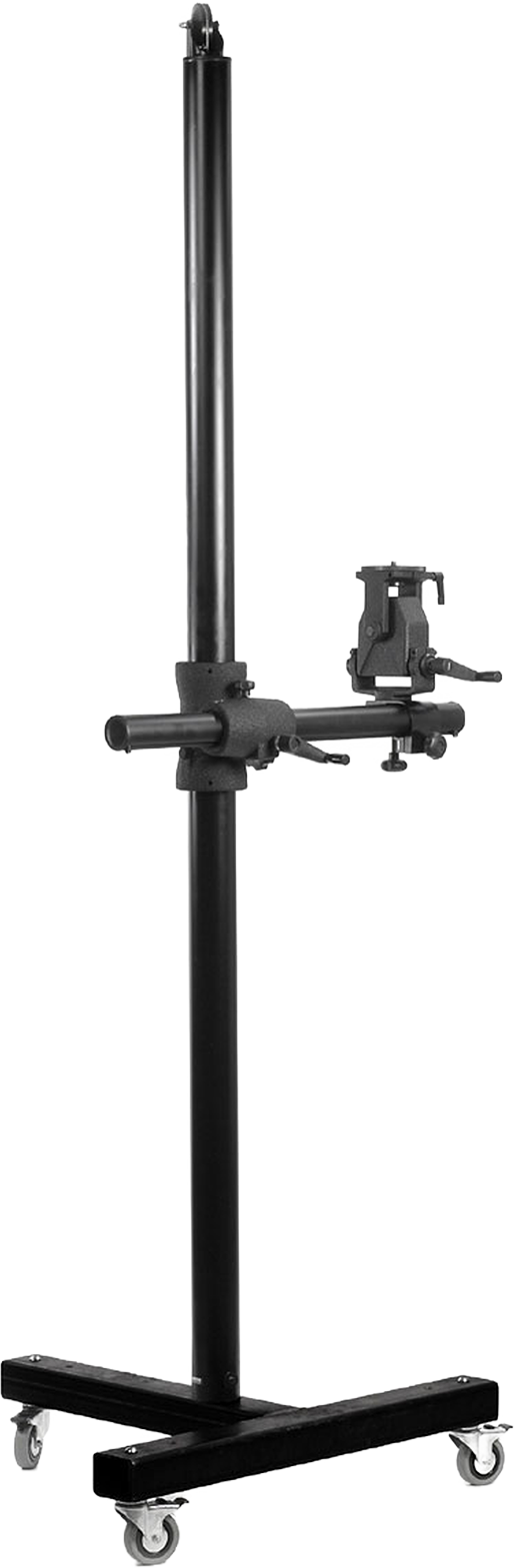

Cambo Mono-1 shown with Mono-0 base and optional tripod head
Cambo MBX-1 / MBX-2
Modern, easy to use stands
The MBX column comes in two height options and has ball bearing movements for the vertical adjustment. Easy to use, the rotation is separately operated and locked from the sliding collar. The cross arm is integrated in the sliding collar and has a generous total length of 100 cm, adjusted using a geared crank for exact positioning. Ideal load capacity on the stand is from 5 kg with incremental additions of 1 kg each. The MBX-0 base is required and is ordered separately from the column.
Height (column only): 195cm / 255cm
Height (complete w/MBX-0): 210cm / 270cm
Weight (column only): 24kg / 26kg
Weight (complete w/MBX-0): 60kg / 62kg
Diameter of column: 85mm
Cross arm length: 1000mm
Recommended Base: MBX-0
Load capacity: from 5kg.

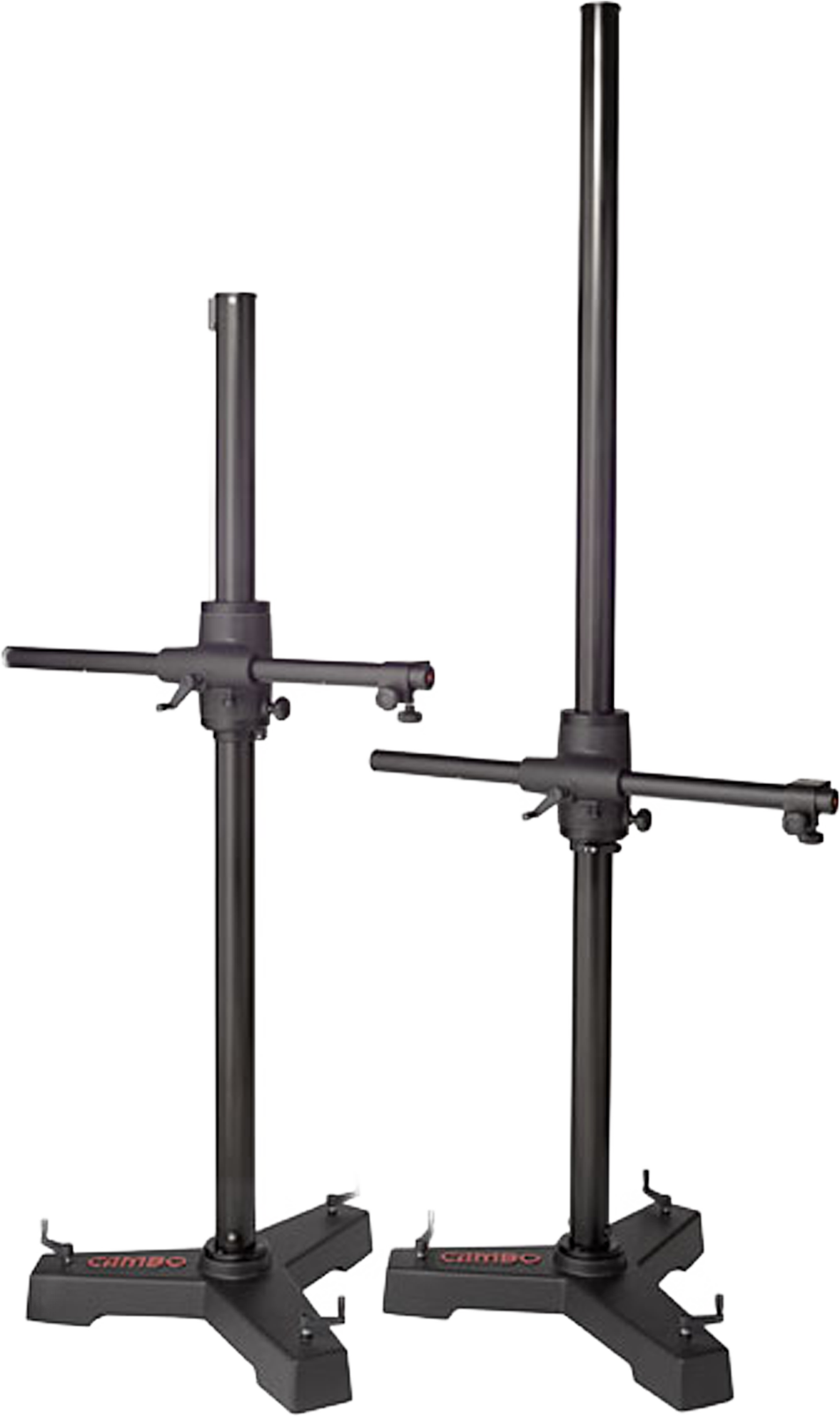

Cambo MBX-1 and 2 shown with MBX-0 base
Cambo MBU-11 / MBU-22
Top of the line, in compact form
Thanks to its large wheels and shorter column the MBU is easy to move between spaces. If necessary, column and base can be separated within minutes, which makes it also a viable solution when you’re commissioned to shoot large series of products at a client’s facilities. The Cambo MBU stand is offered as a complete package. This comprises base, cross arm and camera platform. It’s probably the easiest and most comfortable studio stand to work with and built to last. Both the cross arm’s rotation around the column and the horizontal adjustment move on roller bearings. The vertical adjustment is locked separately from the rotation.
The MBU’s base is a new design. It moves on large wheels which lock at the flip of a central pedal. Thanks to its large footprint and effective brake this will suffice for most applications. If needed (extremely uneven surface, medical applications) additional levelling feet with cranks are available.
Height (column only): 180cm / 240cm
Height (complete with base): 195cm / 225cm
Weight (complete with base): 60kg / 62kg
Diameter of column: –
Cross arm length: 1000mm
Footprint: 110cm x 110cm
Counterweight: 12kg.

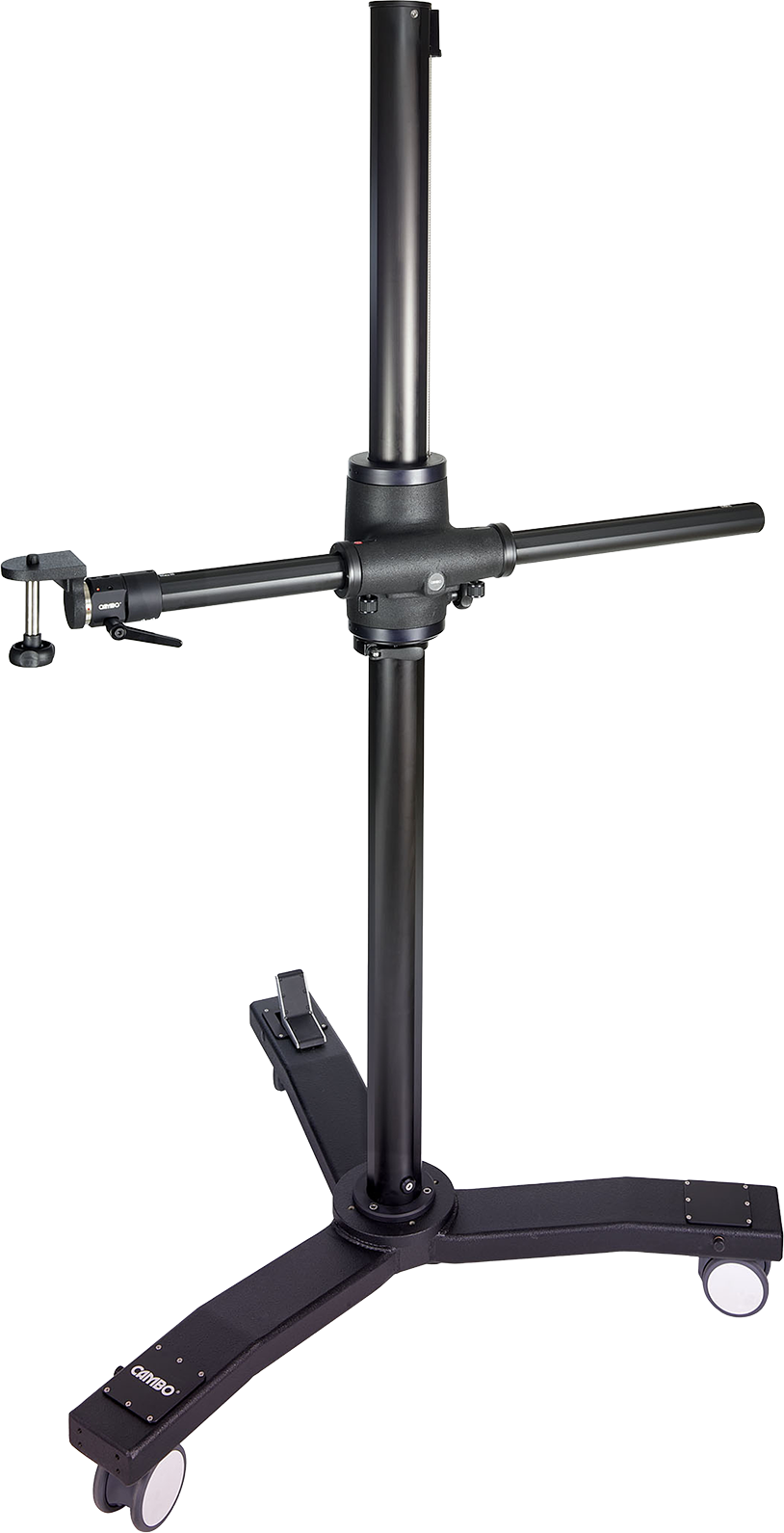

Cambo MBU-11 shown
Cambo UST U-1 / U-2 / U-3
A classic. The heavy duty studio stand
The UST is a heavy duty classic stand series with a column diameter of 120 mm diameter (5″) with sliding collar. Height options of 2.1m, 2.7m, and 3.6m including base and top cover ensure studios with lower ceilings can still avail of all the UST can offer. These stands, like the UBS range are completely modular. Pick the components to build the stand that’s optimised for your studio. A complete stand comprises of a Base, Column, Cross Arm and Camera Platform . Click through via the links to see the options for each component on the Cambo website and the various accessories available.
Height (column only): 190cm / 250cm / 340cm
Height (complete with base): 210cm / 270cm / 360cm
Weight (column only): 54kg / 56kg / 60kg
Weight (complete with UCB & U-4 crossarm): 115kg / 117kg / 121kg
Diameter of column: 120mm

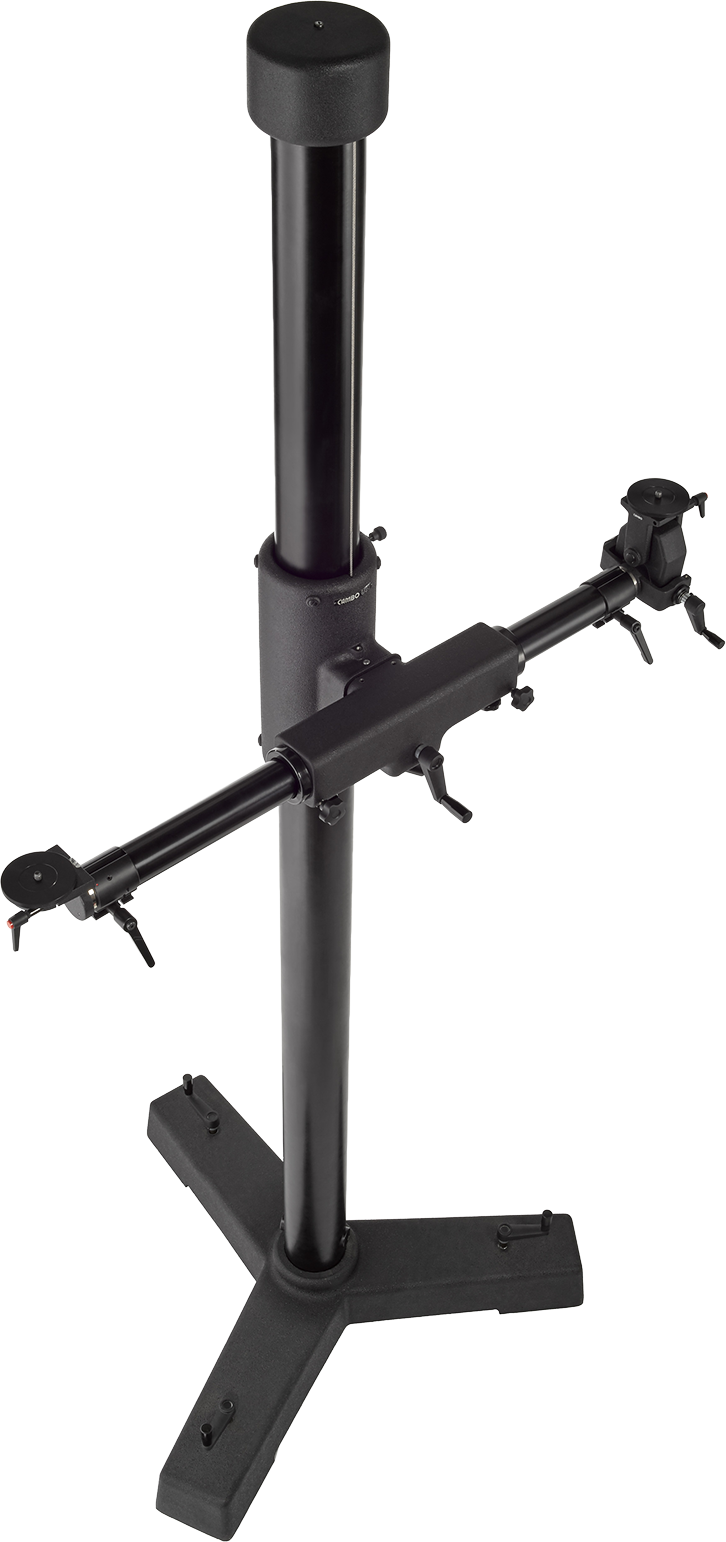

Cambo UST shown with optional accessories
Cambo UBS-1 / UBS-2 / UBS-3
Top of the Range, on roller bearings
These top of the range stands, like the UST range are completely modular. Pick the components to build the stand that’s optimised for your studio set up from the available Base, Column, Cross Arm options and Accessories. The UBS differs from the rest of the range with its 10 cm square (4×4″) column with sliding/rotating collar. All movements are on ball bearings for silky smooth operation, with separate individual lockable movements for vertical, lateral and rotational. Click through via the links in this description to see the options for each component on the Cambo website and the various accessories available.
Height (column only): 194cm / 254cm / 344cm
Height (complete with base): 214cm / 274cm / 364cm
Weight (column only): 54kg / 56kg / 60kg
Weight (complete with UCB base & UBA crossarm): 115kg / 117kg / 121kg
Diameter of column: 100mm x 100mm square

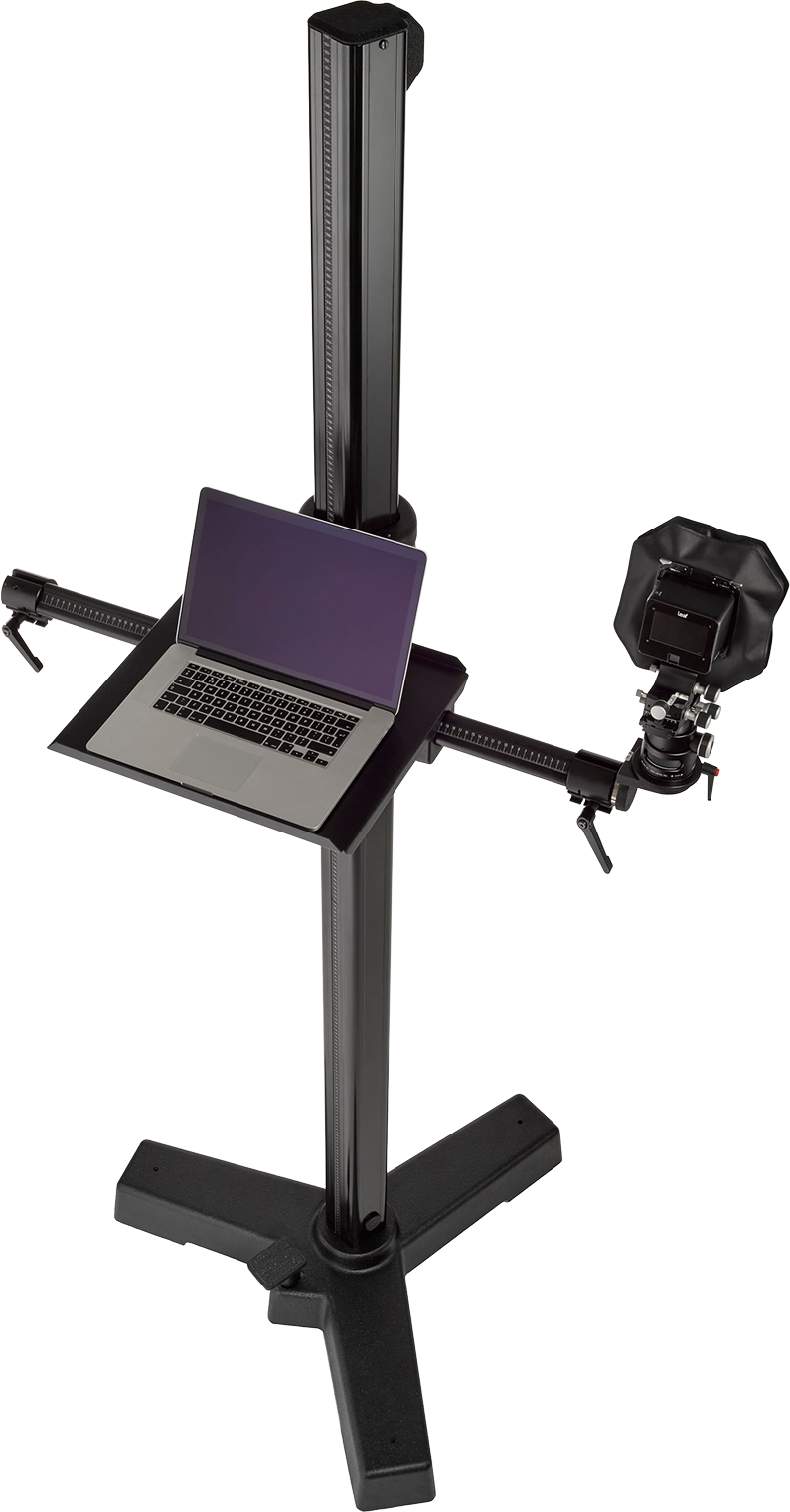

Cambo UBS shown with optional accessories
Cambo Redwing Booms
Cambo’s Redwing Booms feature brass bearings for ultra-smooth movements and precise positioning of the mounted light source.Their unique design keeps the light source parallel to the object, regardless of the height. Mounted on a suitable stand of your choice, these high quality counterbalanced boom arms allow fingertip control of your light, whether you’re working with tabletop product, portraiture or in larger studio sets. They are available in two sizes – standard and compact, with counterbalance options to suit your particular needs.
Redwing RD-1200
The original Redwing light boom
The RD-1200 series features brass bearings for ultra-smooth movements and precise positioning. Thanks to its unique parallelogram design the light source always remains parallel to the object, regardless of the height. The head extension at the end of the boom offers rotation up to 360° controlled by a convenient handle (extension available). The sliding counterweight system is there to balance the weight of the light source and shaper. Once set, raise or lower the light to the height required and let go. The boom stays put without locking a clamp or crank.
Overall Size (Assembled): 2.9m (9.5′)
Weight: 7kg (16 lbs) + Counterweight
Standard Reach: 1.8m (6′) with default 46cm (18″) extension (included)
Disassembly: 3 segments for easy transportation (longest segment 142cm)
Includes:
- 2 x empty counterweight bags (RD-1200)
- 2 x counterweight bags with in total 11.2kg (25 Lbs) of lead shot (RD-1201)
- Mount for fitness weights 25mm/1″ size (RD-1205)

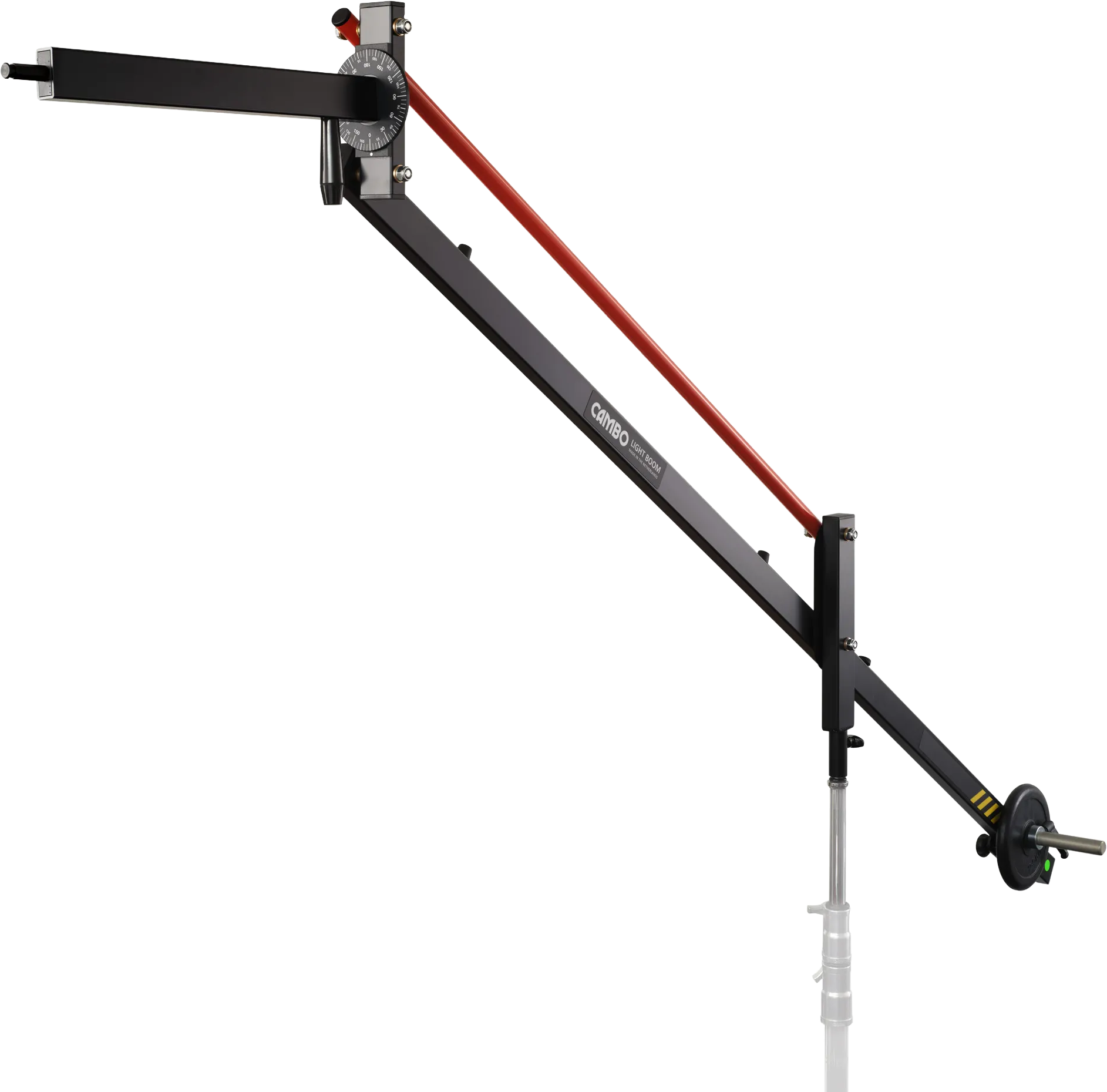

RD-1205 variant shown (fitness weights not included)
Redwing RD-1100
The compact Redwing light boom
The RD-1100 series offers the same build quality and features of its bigger sibling but in a more compact and very portable size. The high quality brass bearings provide precise finger tip control with no need to lock anything off when the desired position of your light has been achieved. This makes it ideally suited to location portraiture, when paired with a c-stand or other suitable light stand. Again, there are 3 variants available, the RD-1100 ships with empty counterweight bags, the RD-1101 prefilled with lead shot and the RD-1105 with fitness weight preparation.
Overall Size (Assembled): 2.9m (9.5′)
Weight: 7 Kg (16 lbs) + Counterweight
Standard Reach: 1.8m (6′) with default 46cm (18″) extension (included)
Disassembly: 3 segments for easy transportation (longest segment 142cm)
Includes:
- 1 x empty counterweight bags (RD-1100)
- 1 x counterweight bags with in total 6.8 Kg (15lbs) of lead shot (RD-1101)
- Mount for fitness weights 25mm/1″ size (RD-1105)
RD-1205 variant shown (fitness weights not included)
Cambo Tripod Heads
Cambo’s range of tripod heads offer photographers both geared and ball head options, engineered to the tightest tolerances and designed to support medium format cameras, technical and view camera setups. These are high quality heads that deliver on build quality and performance, both in the studio and out in the field.

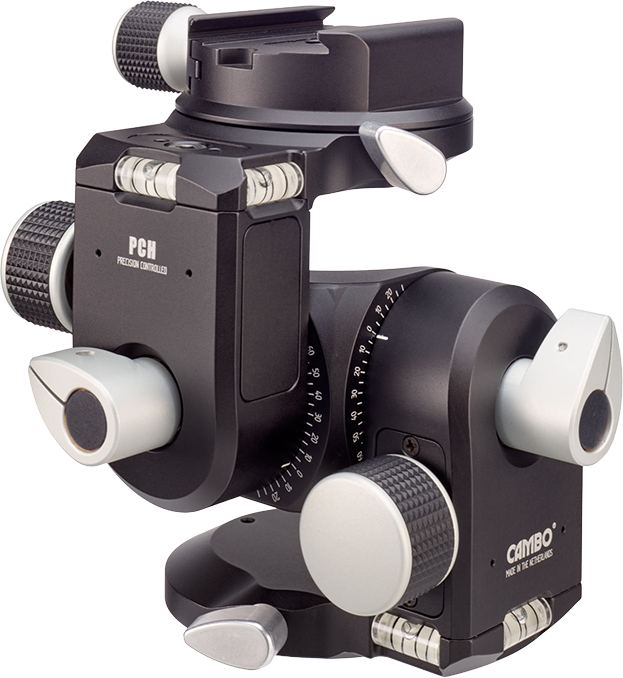

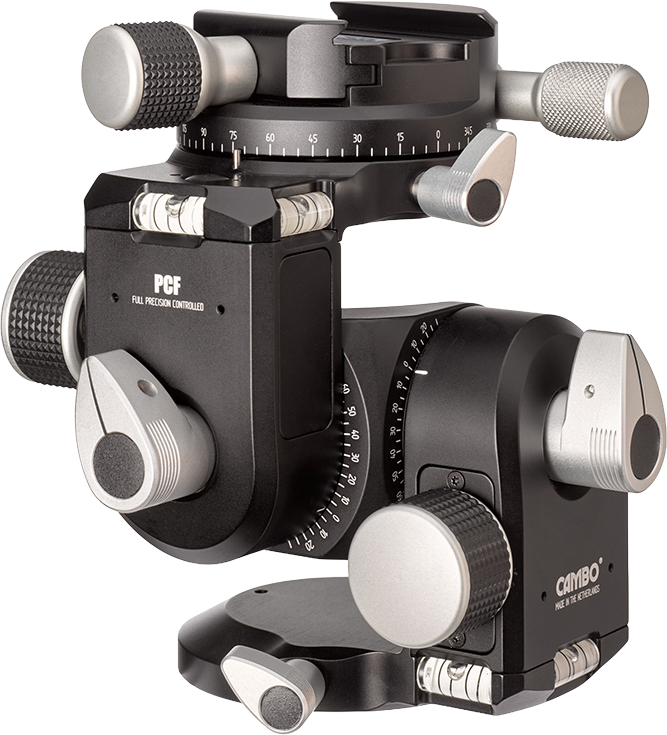

Cambo PCF / PCH
Precision Geared Heads
The PCH and PCF geared heads combine the speed of a ball head with the fine-tuning only fully geared heads can offer. That means, while having the flexibility of a ball head you still have complete control over the X, Y, and Z axis allowing for repeatability. The geared movements are self-locking and available in any position of the head. The bottom as well as the top rotate 360°. After levelling, the top rotation can be used for panoramic shooting. The PCF offers the addition of a geared camera platform which the PCH does not, a useful feature when adjustments in extremely fine increments are crucial to your composition.

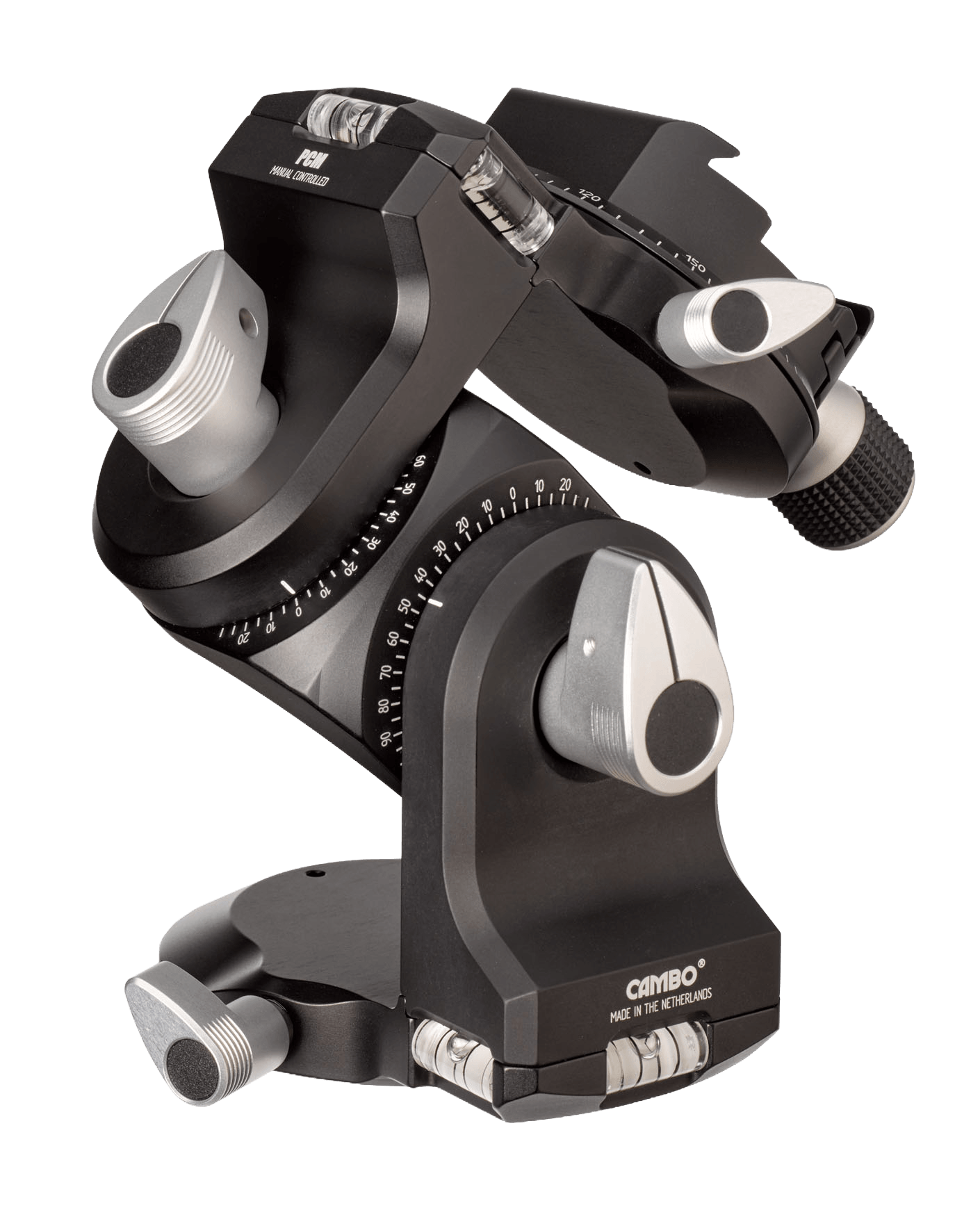

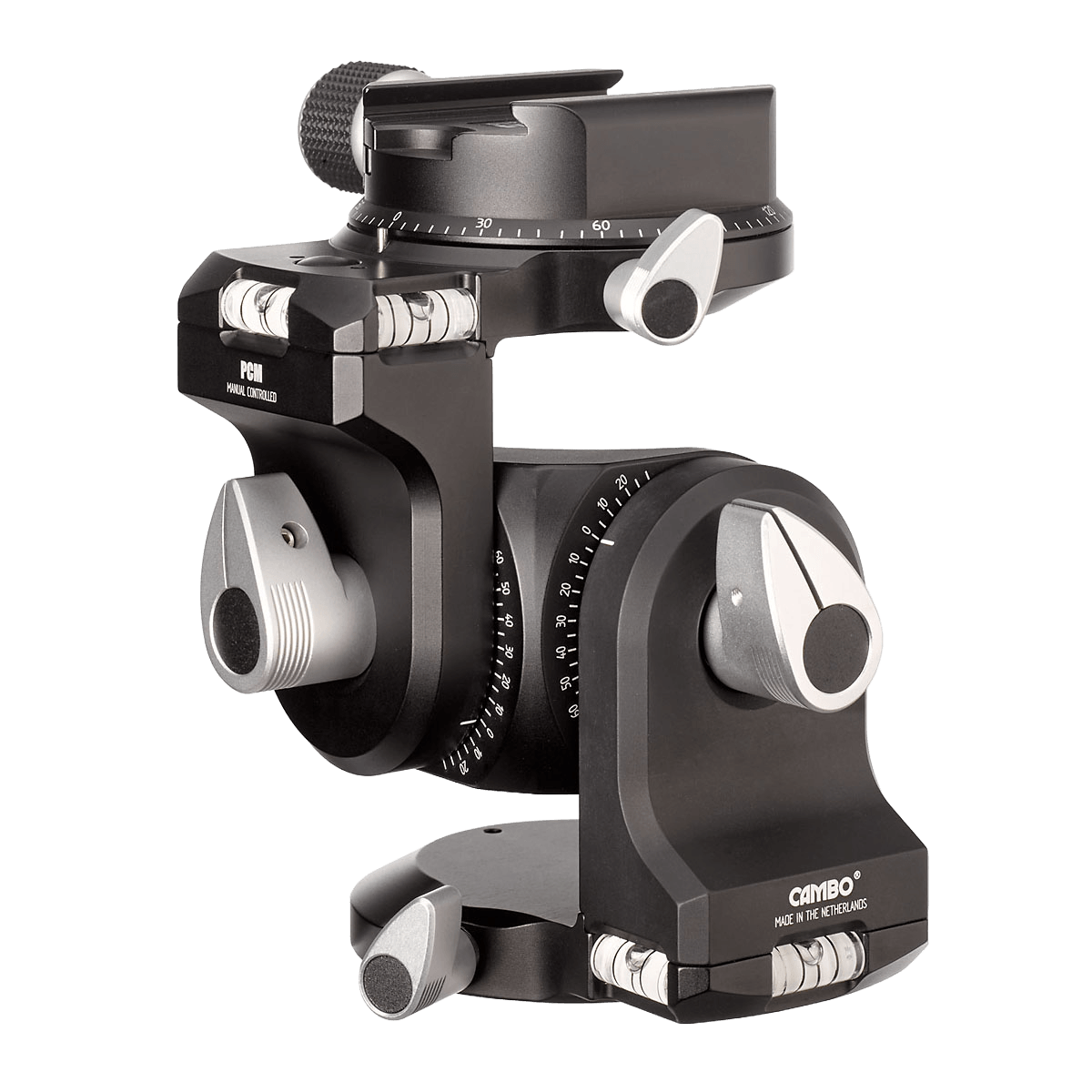

Cambo PCM
Precise Compact Tripod Head
PCM is a manually controlled tripod head. Precisely position the camera with ease. The PCM makes it tilt, swing and rotate. All movements are controlled separately. Bottom and top plate both feature 360° rotation which makes it suitable for panorama shooting. The longer QR-XL is a useful accessory to enable rotation in the nodal point.
The PCM features a quick release top and comes with a 1/4″ QR plate, which has a safety lock to prevent the camera from turning at the mount. View Cameras with an Arca-Style dove tail – like the Cambo Actus and WRS – mount directly onto the PCM, without the need for a QR plate.
Cambo PCS
Heavy Duty Geared Head
The ideal support for view cameras and other studio gear. This is a fully geared head operated by two cranks, for ease of use and stability. The geared movements are self-locking. The bottom and top plate both feature 360° rotation.
The PCS has an Arca-Style mount. Cameras like the Cambo WRS and Actus mount directly onto it. The PCS comes with a QR plate.

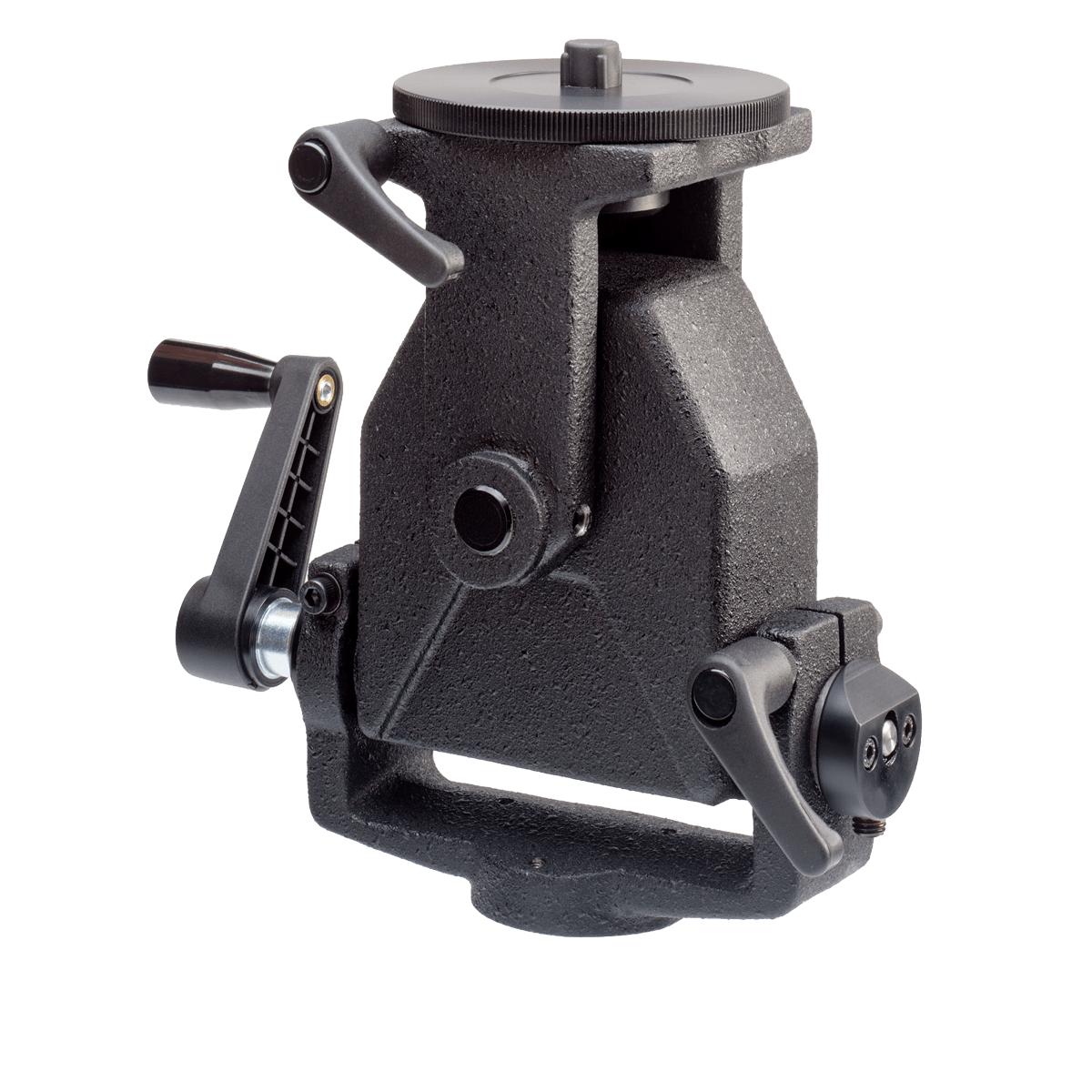

Cambo SCH
Studio Stand Geared Head
Sturdy and stable camera head with geared – self-locking – tilt movement. The SCH has a universal 3/8” thread. The SCH-U is the version that fits directly onto UBA and U-4 cross arms of Cambo Studio Stands.
- 140°of self-locking spindle geared tilt (90° forward/50° backward)
- 180° levelling sideways
- Rotating camera platform

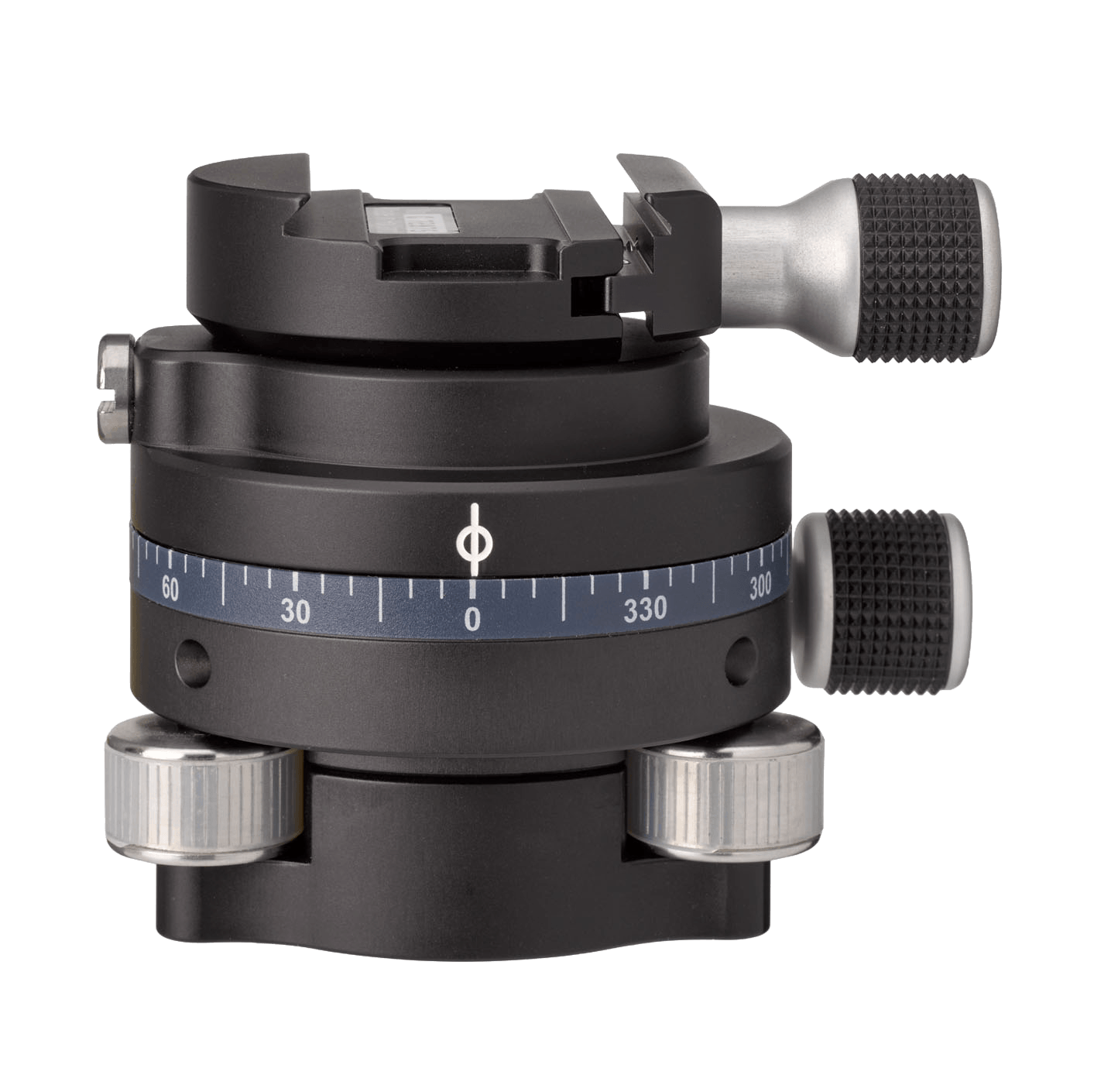

Cambo WRS-334
Levelling Head
- Fine-tuned levelling over 3 knobs within 5 degrees in any direction
- 360 degrees panning of the camera with zero-position click
- Full 360 degree scale for indication of panoramic settings
- Adjustable stops for 2, 12 or 16 clicks per rotation
